Concrete Floor Thickness Guide for Car Hoist Installation

Key Factors to Consider for a Successful Car Hoist Installation in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is crucial to ensure that your concrete floor adheres to the necessary specifications. A robust and stable foundation is essential for the effective functionality of the hoist and for protecting your vehicles and all individuals operating the equipment. Adequate preparation and strict adherence to installation guidelines can significantly enhance both the performance and longevity of your hoist, ensuring that your investment is worthwhile and secure.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This particular measurement is vital as it allows for the even distribution of weight from both the vehicle and the hoist, thereby minimising the potential risk of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to ensure optimal performance and safety during operation, particularly when lifting larger vehicles.

Step-by-Step Guide to Accurately Determine the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital component in ensuring the safe installation and operation of a car hoist. Several factors must be considered when assessing the appropriate depth for your slab to guarantee that it can adequately handle the loads it will experience during use. Understanding these factors will help prevent costly mistakes and significantly enhance the safety of your garage setup, while also ensuring that your hoist functions effectively for years to come.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them. Therefore, it is essential to comprehend the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle, which typically ranges from 1,500 to 2,000 kg, but also the weight of the hoist itself, which can add an additional load of approximately 500 to 1,000 kg. Furthermore, it is prudent to account for extra weight as a safety buffer, ensuring that the structure can withstand unforeseen circumstances and variations in weight.

For most home garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation. Consulting with a structural engineer is a wise decision, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and requirements.

Understanding the Different Types of Car Hoists and Their Concrete Thickness Requirements

It is crucial to recognise that different types of car hoists have distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are among the most popular options for homeowners looking to incorporate a car hoist into their garage. Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the lift operates safely and efficiently, especially when lifting heavier vehicles.

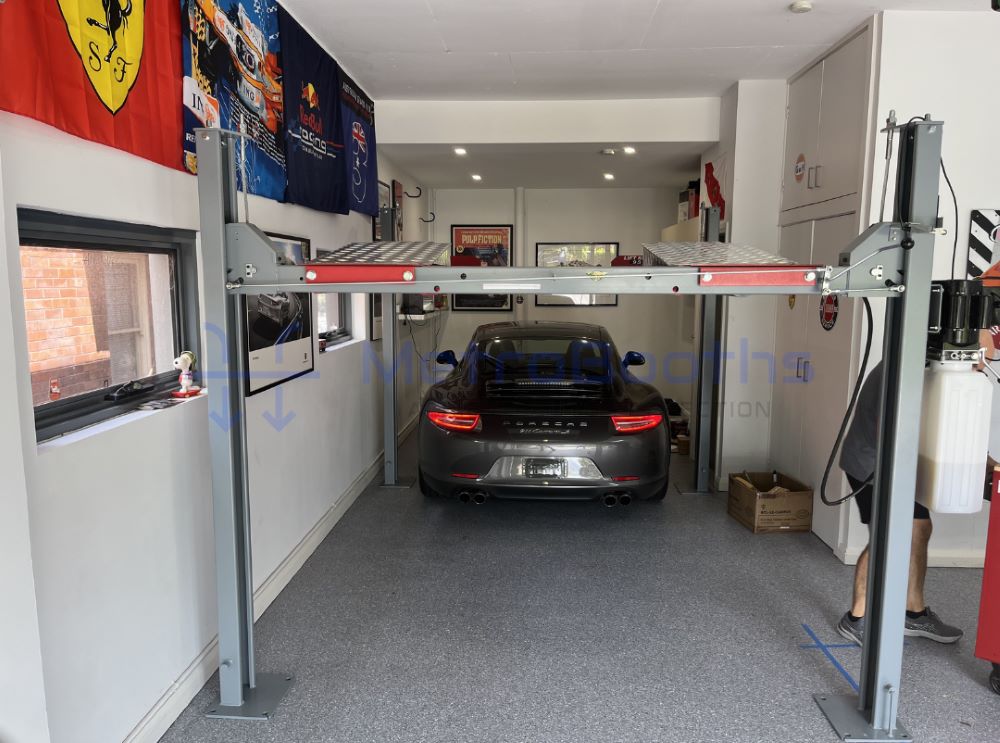

Conversely, four-post lifts distribute weight more evenly across a larger area, allowing them to function efficiently with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This knowledge significantly influences your planning and installation process, ensuring that you select the appropriate hoist for your specific needs. Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for optimal performance and longevity of your equipment.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you plan to lift, so thorough planning and consideration are paramount.

Recognising the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is as critical as its thickness. Stronger concrete can often be successfully employed at a thinner depth while still providing adequate support for heavy loads, particularly relevant in the context of a car hoist installation. It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor, potentially allowing you to utilise a thinner slab while still ensuring it effectively supports heavy loads during operation. For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation and ensuring that your hoist operates safely and efficiently.

Crucial Installation Factors for Ensuring Efficient Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of paramount importance. By giving careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and ensuring that your garage remains functional and efficient.

Essential Site Preparation and Concrete Pouring Techniques for Successful Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use. For new concrete pours, it is crucial to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days to achieve maximum strength and durability.

Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. Avoid placing the hoist over expansion joints or weak areas of the concrete, as this can compromise the integrity of the installation. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable, ensuring that your installation is conducted safely and correctly.

Vital Ongoing Maintenance for Your Car Hoist After Installation

Once your car hoist is installed, it is essential to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality and safety. Regular inspections help maintain the integrity of your installation, ensuring that it remains safe for use.

It is crucial to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues that may jeopardise the safety of your hoist. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining the surface's integrity.

Regularly checking the tightness of the anchor bolts is also essential, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage, contributing to the overall reliability of your hoist. Consider applying a sealant to the concrete to protect against stains and moisture, as such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing valuable insights to help guide your installation process.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation, ensuring that your installation meets all necessary safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing peace of mind and ensuring that your setup is secure and reliable.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards and potential damage to both the hoist and the vehicles being serviced. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation and to ensure compliance with safety guidelines.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, thus protecting your investment in the long run.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that your installation is secure and effective.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, thereby enhancing the overall functionality of your garage.
