Solar Switchboard Upgrade for Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Outcome: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was required.

Why Choose Precision Electrical & Air for Your Essential Switchboard Upgrade

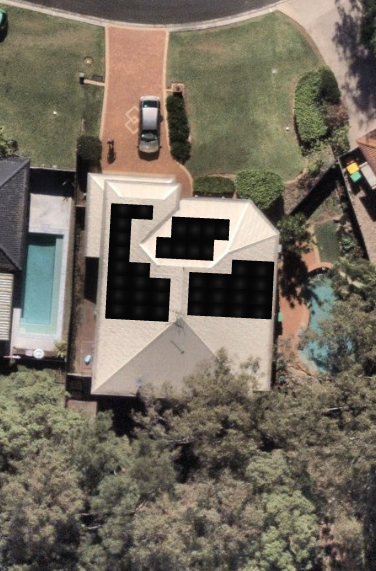

This homeowner in Chelmer undertook a significant renovation that encompassed the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire property. Additionally, a modern ducted air conditioning system was integrated into this extensive plan. Before connecting these advanced electrical systems, it was imperative to assess and upgrade the existing switchboard to ensure alignment with the latest electrical standards and effectively manage the heightened electrical loads that these installations would introduce.

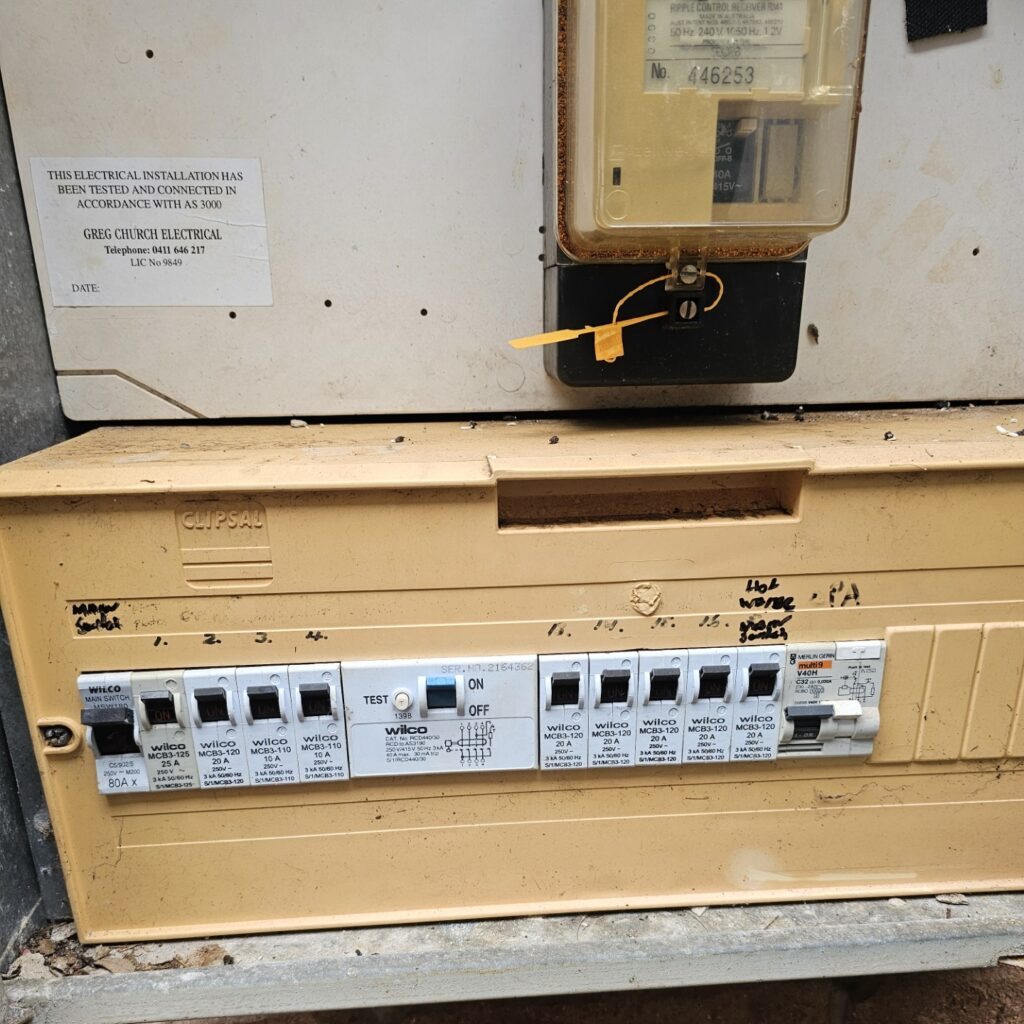

The original switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that offered protection for the entire property. It lacked the capability to support solar energy integration and battery storage. Furthermore, the circuit labelling was inadequate, rendering it non-compliant with contemporary standards governing modern energy generation systems. This lack of compliance represented a considerable risk to the efficient operation of the newly upgraded systems, necessitating immediate attention.

Is a Three-Phase Upgrade Really Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system combined with a 30kWh battery, it is a common misconception that a three-phase upgrade is essential. This misunderstanding may lead to significant financial consequences for homeowners, potentially incurring costs ranging from £3,500 to £6,000, along with a lengthy wait for approval from Energex for network modifications. Understanding the true requirements can save you both time and money.

In-Depth Technical Assessment Conducted to Evaluate Upgrade Needs

Two critical factors were instrumental in determining the necessity of a three-phase upgrade. Firstly, the supply cable for the residence was strategically positioned near the street junction. This advantageous location allowed the voltage rise calculation for solar energy export to remain comfortably within Energex's single-phase limit of 2%. Secondly, since both the solar and battery systems are designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for requiring a three-phase upgrade. Additionally, the ducted air conditioning system complied with essential parameters for efficient single-phase operation, reinforcing the decision to maintain the existing configuration.

As a result, the decision was made to retain the single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards, thus providing peace of mind for the homeowner.

Comprehensive Examination of Installed Components to Ensure Safety and Compliance

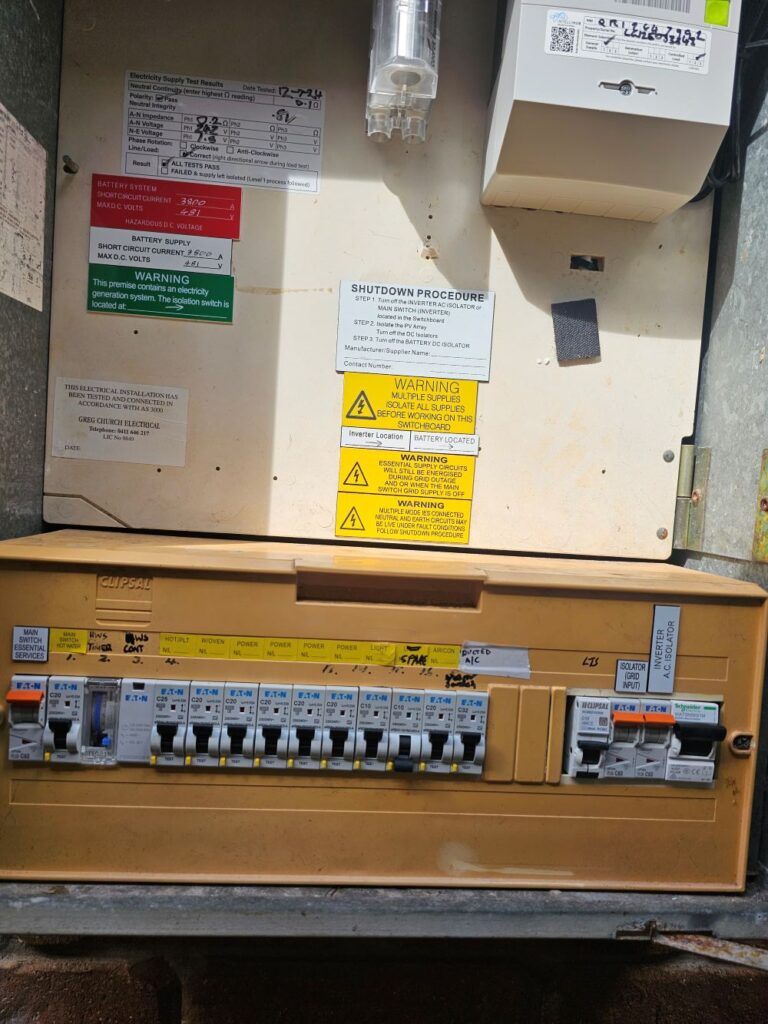

The existing switchboard underwent a complete dismantling and an extensive reconfiguration process. All circuit breakers were replaced with new, appropriately rated units sourced from Eaton, and each breaker was meticulously labelled for easy identification. The circuits were carefully separated; dedicated circuits for power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were established to enhance safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to guarantee efficient operation during peak solar generation hours. This strategic addition significantly reduces dependence on the grid by optimising the solar system's output throughout the day, resulting in increased energy efficiency. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality, ultimately contributing to the overall efficiency of the system.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator and a dedicated grid isolator, alongside comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC. The switchboard features a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electrical supply tests were conducted successfully and thoroughly documented for the switchboard, ensuring traceability and compliance.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately configured for any future electrical service work required at the property, providing reassurance to the homeowner.

Homeowner Reaps Benefits from a Successful Switchboard Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade, which was not essential for their specific circumstances, allowing them to allocate their resources more effectively.

Have You Received a Quote for a Three-Phase Upgrade and Are You Unsure of Its Necessity?

While three-phase upgrades can be crucial in specific scenarios, they are not universally required for every property. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear and transparent assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property, ensuring you make an informed decision.

We guarantee no upselling occurs; you will receive an accurate evaluation tailored to your home, providing you with exceptional value.

Your Frequently Asked Questions Addressed Regarding Solar and Switchboard Upgrades

How do Electricians Determine the Necessity of Three-Phase Power for Solar Systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters, thereby ensuring compliance with local regulations.

Does Having a Larger Solar System Automatically Necessitate Three-Phase Power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels. This understanding is essential for homeowners to avoid unnecessary upgrades.

What is Voltage Rise, and Why is it Crucial for Solar Energy Installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property, ensuring both safety and compliance with electrical standards.
